Cubic transfer film for the ABS
Sumarry
Cubic transfer films is falttened at water,the pattern on the film is transferred under the action of water pressure on the workpiece which is sprayed with a primer or no primer. After the film is automatically dissolved, the workpiece with the pattern is cleaned, dried, and then sprayed again on its surface Topcoat for protection. The birth of the process, to fill the human history of three-dimensional surface printing decoration blank.
Application

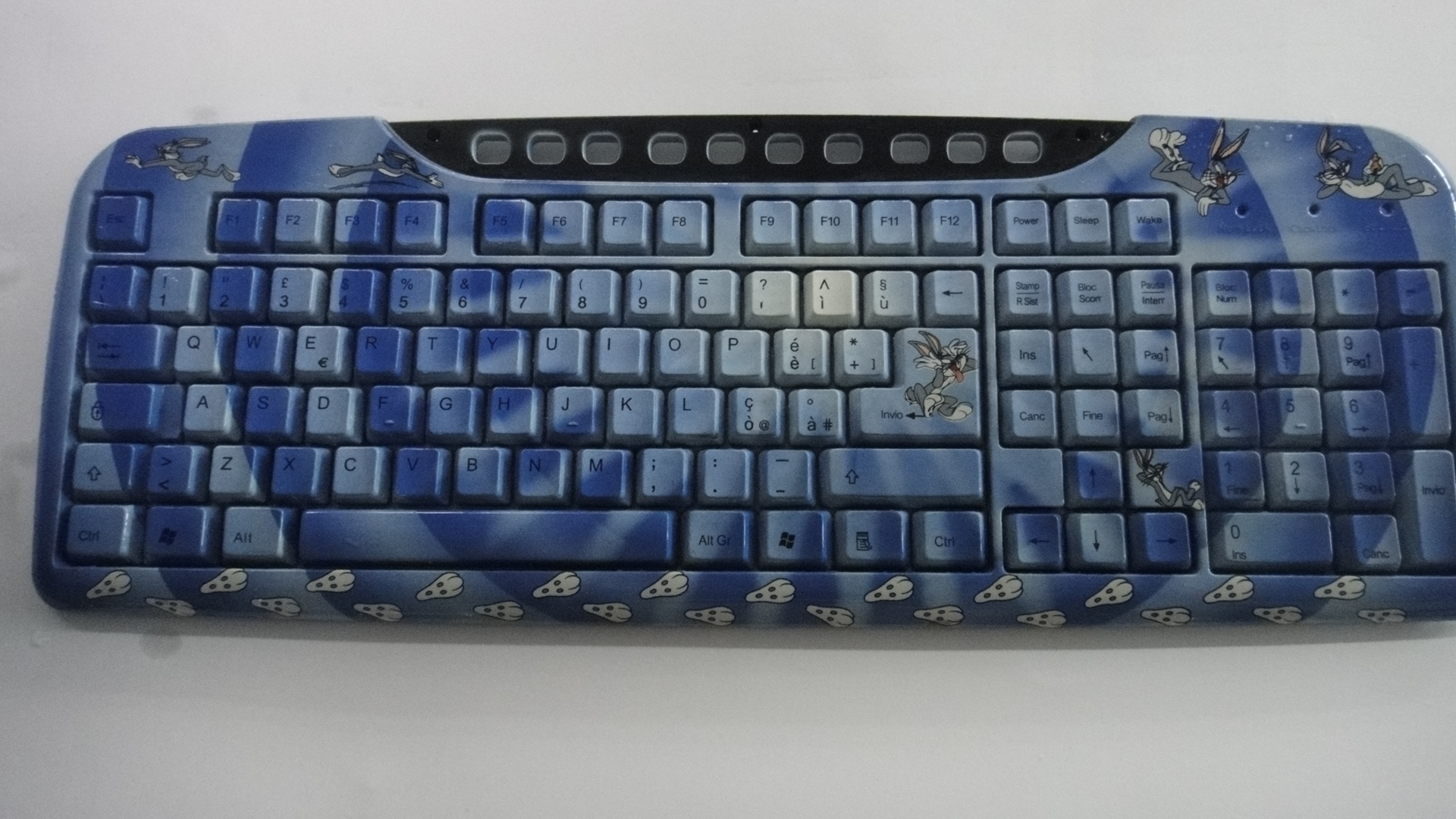

Cubic transfer can be used for a variety of processed materials such as: EVA, PVC, PP, ABS, PU resin, ceramics, hardware, glass and other product surface.it can use for ornament your electroinca parts such as the mouse,keyboard.it also can use the household tools such as the hair dryer,umberlla handle, casque and so on ,it can make your things very beautifull and unique.
Advantage
- The color pattern has good adhesion to the surface of the object
- Film evenly
- Quality and stability
- Patterns realistic
- The process is simple and quick, operable
- High production efficiency and low cost
- Patterns and outlets clear
- Rich sense of hierarchy, strong sense of beauty
Techenological process
| 1. Film Print |
A pattern is gravure printed onto water soluble film. |
| 2. Re-wetting of the Inks |
The film’s special features are brought out by the re-activation of the inks. |
| 3. Transfer |
The substrate is gently pushed onto the film floating on the water’s surface and a pattern is transferred by the water’s natural pressure. |
| 4. Film Residue Removal & Wash |
Once the film’s purpose is fulfilled, excess (unnecessary film) is washed away. |
| 5. Drying |
Drying off any remaining water particles during transfer. |
| 6. Top Coat |
Drying and protection of surface with a topcoat. |
Package and delivery
we will use the stander export carton to make sure the goods is not damaged., we can provide goods within a week if we have enough raw materials at store.
